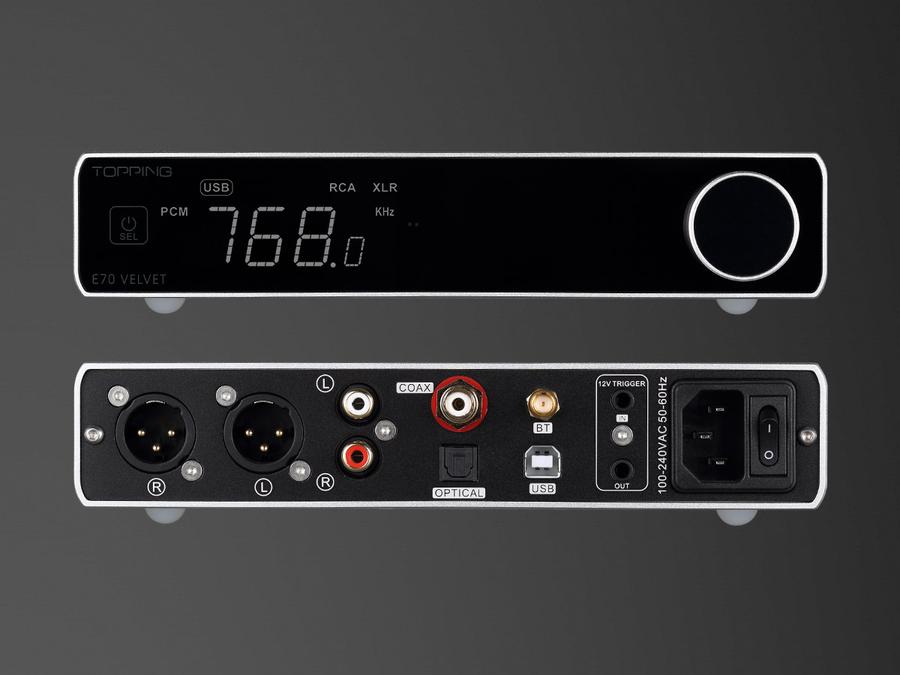

TOPPING E70V / E70 Velvet AK4499EX Desktop DAC

Description

GARANSI RESMI 1 TAHUN !!!



Specs

USB IN

PCM: 44.1kHz – 768kHz/ 16bit – 32bit

DSD (Native): DSD64 – DSD512

DSD(DoP): DSD64 – DSD256

COAX/OPT IN:

PCM: 44.1kHz – 192kHz/ 16bit – 24bit

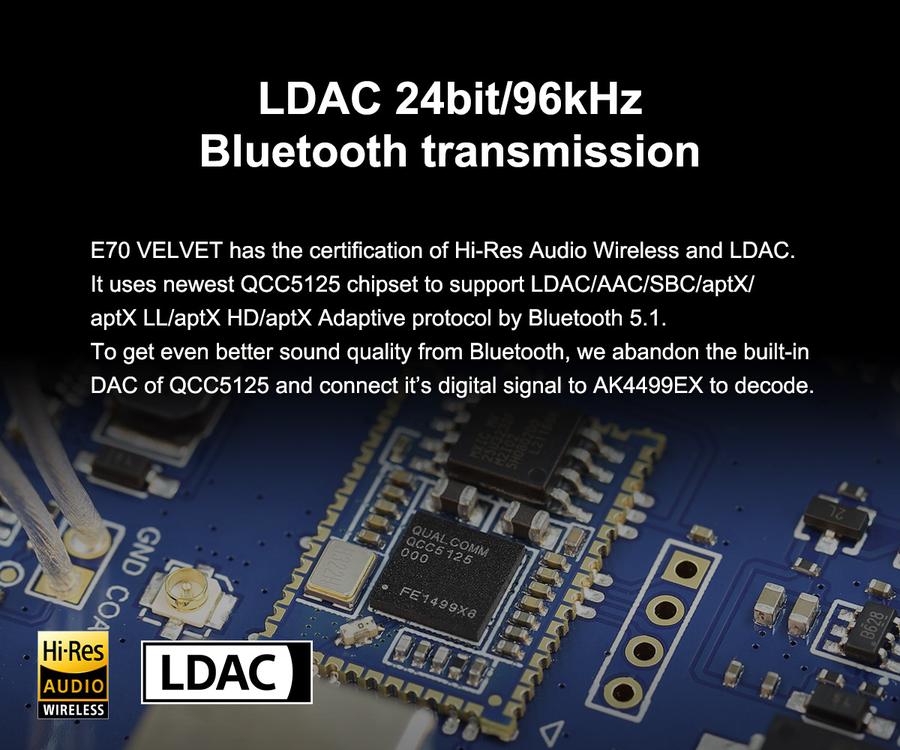

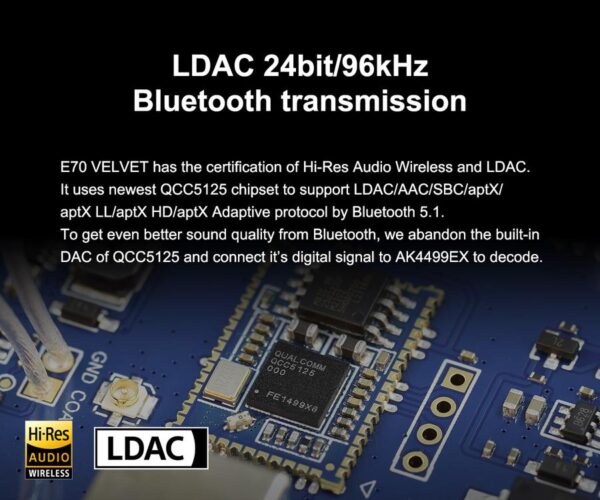

BT IN:

AAC/SBC/APTX/APTX LL/APTX HD/APTX-Adaptive/LDAC

RCA parameters

THD+N (A-wt):

THD @90kBw (No-wt):

SNR (A-wt): 125dB @1kHZ

Dynamic range (A-wt): 125dB @1kHZ

Frequency Response

20Hz-40kHz(±0.3dB)

20Hz-40kHz (±1.0dB)

Output Level

2.1Vrms @OdBFS(4V Mode)

2.5Vrms @OdBFS(5V Mode)

Noise (A-wt):

Channel Crosstalk: -130dB @1kHZ

Channel Balance: 0.3dB

Output Impedance: 50Ω

XLR parameters

THD+N (A-wt):

THD @90kBw (No-wt):

SNR (A-wt): 131dB @1kHZ

Dynamic range (A-wt): 131dB @1kHZ

Frequency Response

20Hz-40kHz(±0.2dB)

20Hz-40kHz (±0.8dB)

Output Level

4.2Vrms @OdBFS(4V Mode)

5.0Vrms @OdBFS(5V Mode)

Noise (A-wt):

Channel Crosstalk: -143dB @1kHZ

Channel Balance: 0. 3dB

Output Impedance: 100Ω

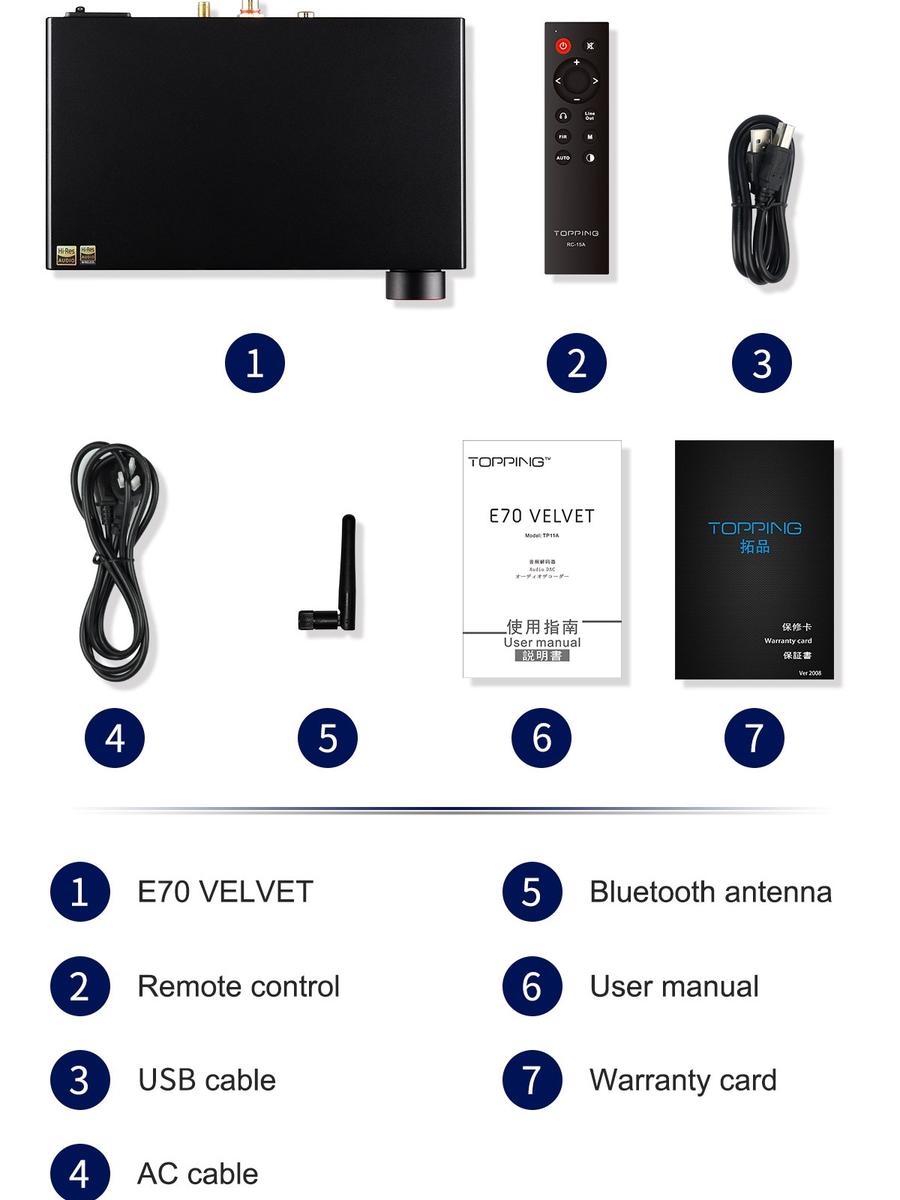

What’s included

TOPPING E70 Velvet

Remote control

USB cable

AC cable

Bluetooth antenna

User manual

Warranty card

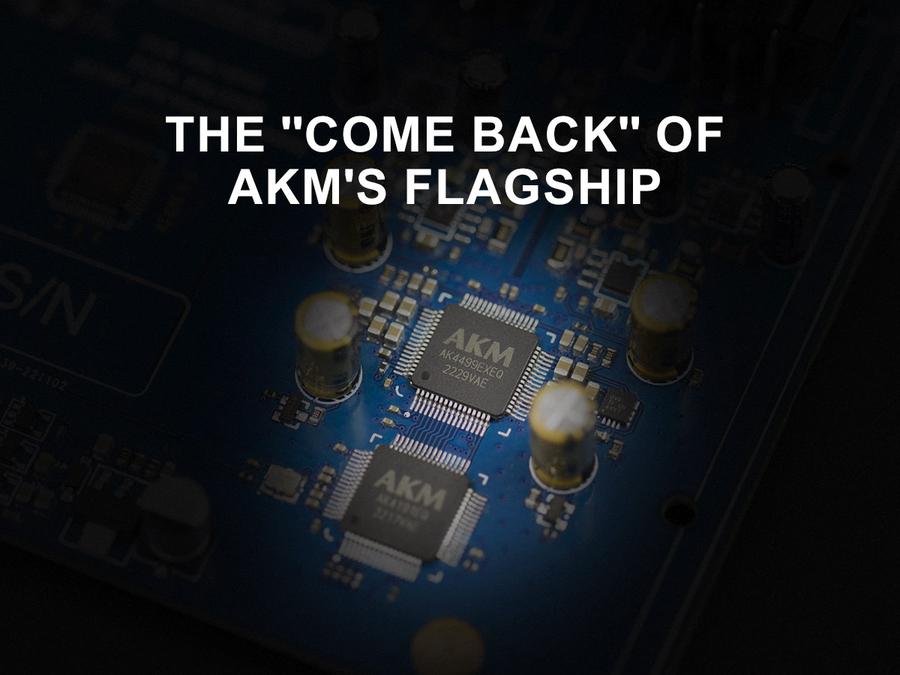

The all-new AKM flagship

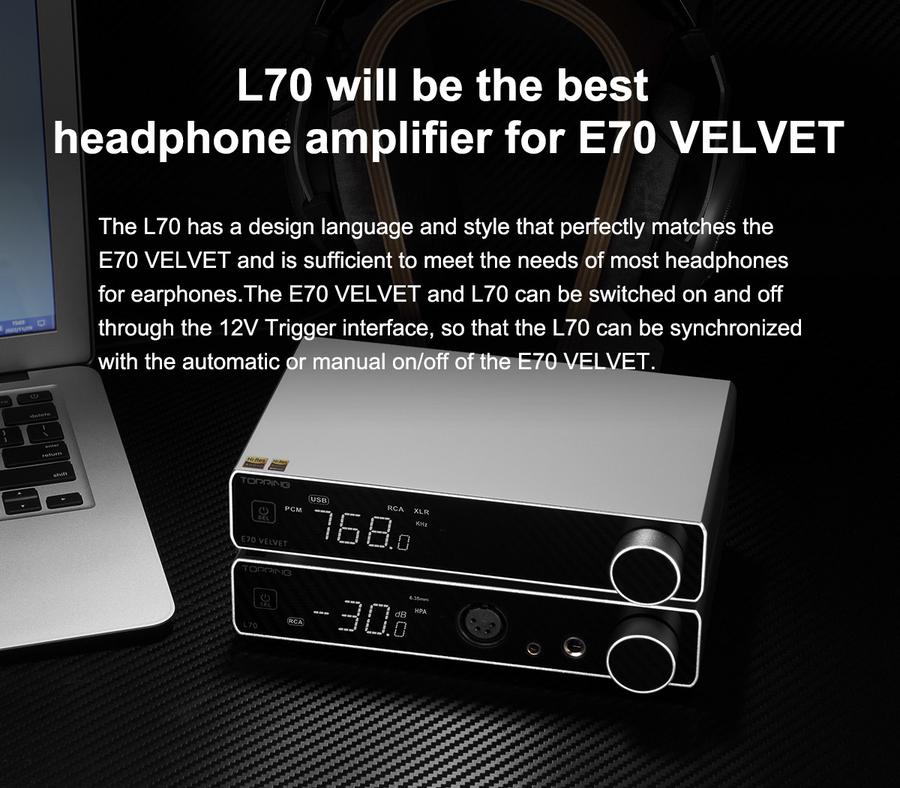

Take your listening to the next level with the E70 Velvet, a desktop DAC that features the flagship AKM AK4499EX DAC chip. Designed to pair perfectly with the TOPPING L70 Fully Balanced NFCA Headphone Amplifier, it decodes Bluetooth and USB audio at the highest levels available.
